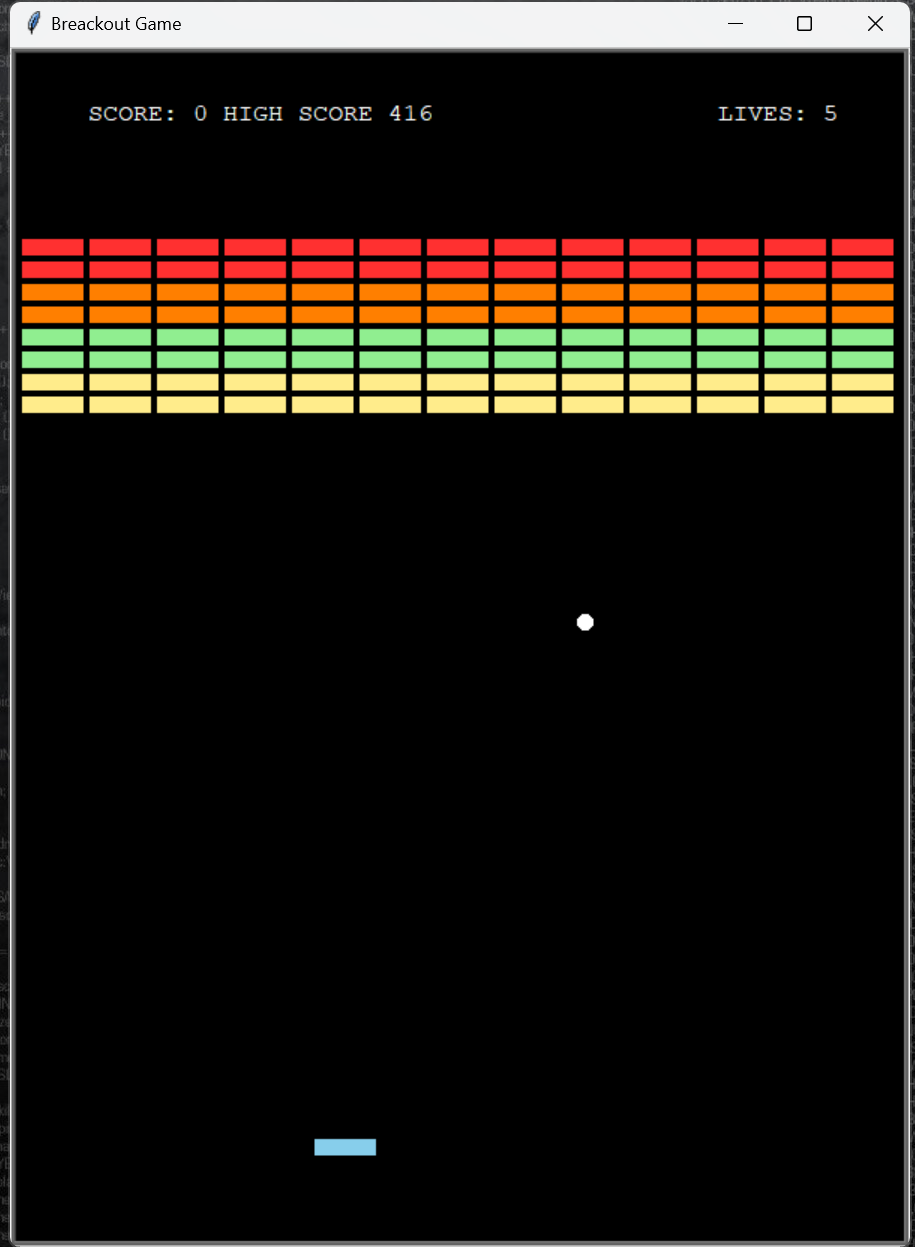

> Arcade Engine: Break-out Game
// Created at: 30-07-2026
[Project Overview]
This engine is a highly structured, Object-Oriented simulation of the classic retro arcade game Breakout, built entirely from the ground up using Python and the Turtle Graphics graphics module. Moving away from single-file procedural layouts, this project partitions operational logic into independent modules: vector-shifting projectiles (Ball), multi-layered array matrices (BricksConstructor), user-controlled boundaries (Paddle), and persistent record file logs (Scoreboard). The software implements complex mechanisms like dynamic framerate throttling, color-mapped scoring vectors, and a dual-stage execution loop layout that allows the game pieces to continue moving automatically in the background even after a game-over event.
[_Case Study]
>__Game State Loops and Vector Intersections
The diagram maps the dual-stage loop system, event handlers, and scalar coordinate tracking paths used during execution.
+-------------------------------------------------------------+
| GAME_IS_ON LOOP |
| Active Gameplay & Collision Invalidation |
+-------------------------------------------------------------+
|
+----------------------------+----------------------------+
v v
+-----------------------------+ +-----------------------------+
| WALL VECTOR BOUNCE O(1) | | DYNAMIC DUAL-LOOP MUTATION |
| xcor() limits: <-280 | >280 | | - Vector check: <20px |
| ycor() ceiling limit: >380 | | - Cascaded in-place array |
+-----------------------------+ | pruning via .remove() |
| +-----------------------------+
| |
+------------------------------+----------------------------------+
v
+-------------------------------------------------------------+
| PADDLE MISS BREAK TRIGGER |
| Fires when ycor() < -335 -> Resets ball position |
+-------------------------------------------------------------+
|
v (Triggered upon Lives < 1 or Empty Brick Array)
+-------------------------------------------------------------+
| GAME_IS_OVER LOOP |
| Endgame Screens & Continuous AI Simulation |
+-------------------------------------------------------------+
|
v
+-------------------------------------------------------------+
| SHIELD ENLARGEMENT SHIM |
| Fires `paddle_enlarge()` -> Spreads paddle length to 300 |
| Creates an infinite bounce line at the baseline boundary |
+-------------------------------------------------------------+
