> Enterprise Car Rental Fleet & Reservation Management System
// Created at: 04-08-2026
[Project Overview]
Engineered a high-concurrency, low-latency Fleet Resource Planning (ERP) platform and Cross-Platform Synchronizer that unifies an on-premise back-office management system with a live, remote WordPress/WooCommerce platform. By bypassing traditional, high-overhead REST APIs in favor of direct, multi-tenant connection pooling managed under strict ACID-compliant transaction sandboxes, the system guarantees real-time data alignment, zero data-drift, and maximized operational throughput. Technical Stack Architecture * **Backend Core:** Python / Flask / Aspect-Oriented Programming (AOP Decorators for latency profiling) * **Persistence & Resource Pooling:** MySQL, Thread-Safe Multi-Tenant Database Connection Pooling (`mysql.connector.pooling`) * **AI & Computer Vision:** Google Cloud Vision API (REST Transport layer), Regular Expressions (`re` structural matching matrices) * **Document Processing:** ReportLab Vector Canvas, WSGI Binary Streaming Pipes, PIL/Pillow (Alpha-Channel manipulation) * **Data Structures Efficiency:** In-Memory Hash Tables ($O(N+M)$ Hash Joins), Python Sets (Deduplication matrices) * **Frontend Interface:** HTML5 / CSS3 / JavaScript (For interactive timeline layouts, data representation, and reservation editing) The Problem vs. The Architectural Solution * **The Challenge:** The business relied on fragmented, unvetted e-commerce text data, manual spreadsheet tracking for physical vehicle allocation, and paper documents. This introduced high risks of double-booking, missed legal compliance deadlines (ITP, RCA, Vignette), and data-entry errors that slowed down customer over-the-counter onboarding. * **The Solution:** A secure, high-performance web dashboard that establishes direct database connection tunnels to production tables. It replaces manual scheduling with a backend calendar discretization matrix, secures fleet metrics using an in-memory range-intersection radar, and automates vehicle handovers via zero-disk binary PDF document factories. Key Subsystems & Core Engineering Impact 1. Cross-Server ACID Booking Ingest Engine * Bypasses standard API overhead by managing direct SQL mutations over remote databases. * By forcing `db_wp.autocommit = False`, the engine packages sequential entries across four separate tables (`customers`, `bookings`, `options`, `invoices`) inside an unclosed transaction sandbox. Any re-validation drop or network lag triggers a global `.rollback()`, completely erasing partial records to maintain perfect data integrity. 2. In-Memory Time-Series Conflict Radar * Replaces slow database lookup cycles with an optimized chronological intersection algorithm. * By parsing complex date ranges and hourly strings into stabilized datetimes entirely in RAM, a fleet scheduling conflict is caught the exact microsecond an overlapping condition resolves to true ($exist\_start < new\_end \land exist\_end > new\_start$). * Features split-path logic: it keeps website sales unblocked while instantly alerting lot dispatchers to handle asset re-allocations manually. 3. Asymmetric AI Identity OCR Orchestrator & Region Router * Integrates an asynchronous Google Cloud Vision OCR Engine over lightweight, stateless REST communication pipes (`transport="rest"`) to minimize CPU daemon memory locks. * Engineered an advanced Asymmetric Region Precedence Classifier Cascade utilizing strict negative matching conditions (`and not is_germany`) to prevent cross-country keyword drift on multi-language European cards. * Includes a reverse-chronological date fallback sifter (`[-1]`) to isolate legal expiration thresholds under distorted card visibility. 4. Low-Latency Zero-Disk Document Asset Factories * Wipes out local file-system caching vulnerabilities by compiling legal handover PDF documents (**Proces Verbal de Returnare**) completely in memory. * Maps layout elements programmatically on an absolute A4 2D point grid, using TrueType `ArialUnicode` encoding to render Romanian diacritics natively. * Captures touch-screen signatures as raw byte streams, applies a 300% supersampling filter to sharpen vector lines, and runs pixel-by-pixel color filters to remove background white grids. Completed files are delivered via a WSGI `FileWrapper` chunking protocol to prevent server memory exhaustion. 5. Custom-Range Business Intelligence (BI) Analytics Center * Engineered a Safe RAM Processing Engine that streams unaggregated records directly into worker memory. It uses regular expressions to strip out formatting noise and applies `NULLIF`/`COALESCE` filters to cast messy string entries into high-precision decimal numbers. * Implements an In-Memory Hash-Set Discretization Loop (`set()`) that processes contract lifecycles day-by-day to eliminate same-day turnaround duplication bugs. * Derives advanced asset performance indicators, tracking Average Daily Rate (ADR) against Revenue Per Available Vehicle (RevPAV) over long-term, multi-year macro trends to maximize fleet yields.
[_Case Study]
>__High-Level Component Topology
This enterprise application functions as a High-Concurrency Fleet Resource Planner (ERP), Cross-Platform Transaction Synchronizer, and AI-Powered Identity Ingestion Subsystem. The architecture bridges a local Flask back-office administration node with a remote, live WordPress/WooCommerce production instance. By bypassing traditional API layers in favor of direct, connection-pooled SQL mutations managed under non-autocommit execution sandboxes, the system guarantees low latency and absolute atomic multi-table synchronization.
. APPLICATION CORE
+----------------------------------------------------------------------------------------+
|
+----------------------+----------------------+
| | |
v v v
[1. Connection Pools] [2. Execution Engine] [3. AI OCR Orchestrator]
| | |
+----------------------+----------------------+
|
v
+------------------------------+
| [4. Persistence Layer] |
+------------------------------+
|
+----------------------+----------------------+
| |
v v
{Local MySQL Store: app_pool} {Remote Production: wp_pool}>__State Abstraction & Connection Resource Management (app_pool / wp_pool)
app_pool: Intercepts and routes transactional states for internal metadata lookups, local scheduling check-ins, asset compliance logs, and background analytics tasks. wp_pool: Connects directly to the live production database. It handles remote ordering rows, customer accounts, and many-to-many relationship tables on the fly without web server lagging.
| Shared Thread Pool Cluster |
+---------------------------------------+
|
+--------------------+--------------------+
| |
v v
{Local Workspace Store} {Live Production Endpoint}
`app_pool` `wp_pool`
| |
- On-Premise Inventory Logs - Remote Invoicing Tables
- Asset Maintenance Tables - Live Consumer Schedules

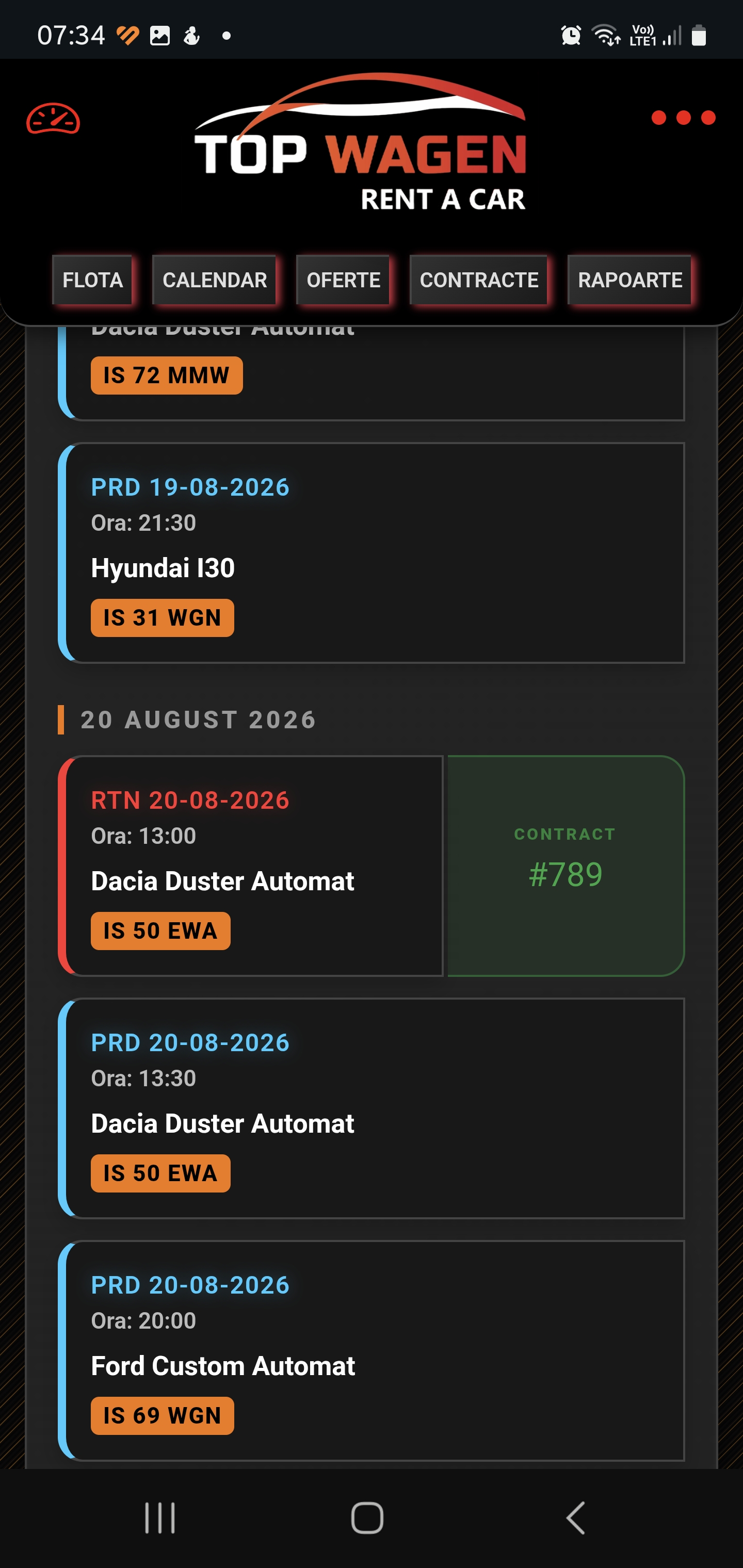

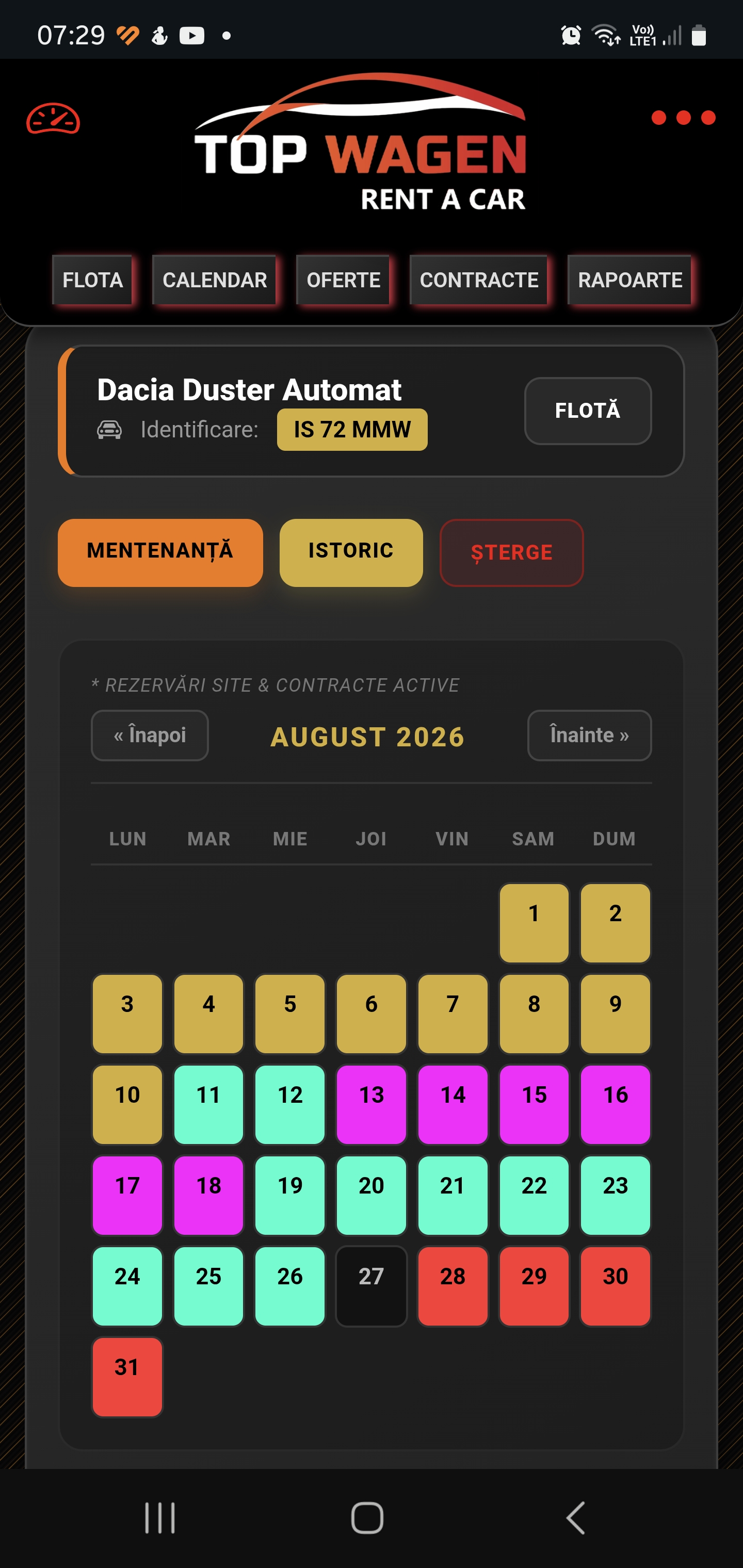

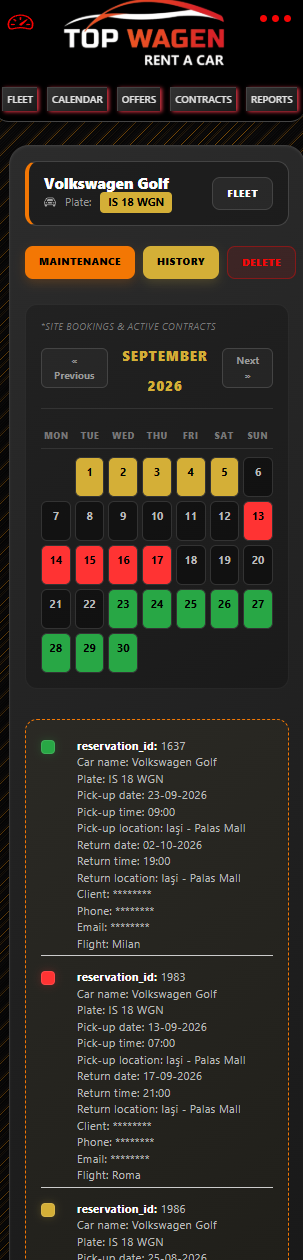

- Scheduling Radar Matrices - Many-to-Many Extra Pivots>__Time-Series Range Intersection Scheduling Radar
To block scheduling overlaps and double-bookings across the fleet completely, the core system relies on deep chronological datetime evaluations rather than loose text array lookups. The Conflict Calculus Loop Engine: Combines separate date blocks and hourly strings from database records into unified timeline tracking variables. A fleet scheduling conflict is confirmed if an existing rental's checkout time falls ahead of a candidate's proposed check-in threshold (b_start < search_end) AND its check-in return window reaches past the candidate's checkout point (b_end > search_start). Split-Path Inventory Isolation: If the mathematical intersection radar flags a timeline overlap during a live website sync, the system uses an intelligent split-path strategy. Instead of dropping the customer's web transaction, it completes the online order, blocks only the local allocation record, and flashes a warning notification to the dispatcher dashboard. This keeps the transaction flow unblocked while prompting lot managers to assign a different vehicle manually.
[Existing Booking] |===============| (Pickup to Return)
: :
[Candidate Booking] |-------------------|
: :
[Radar Collision Condition]: b_start < search_end AND b_end > search_start>__ACID-Compliant Cross-Server Booking Ingestion Engine

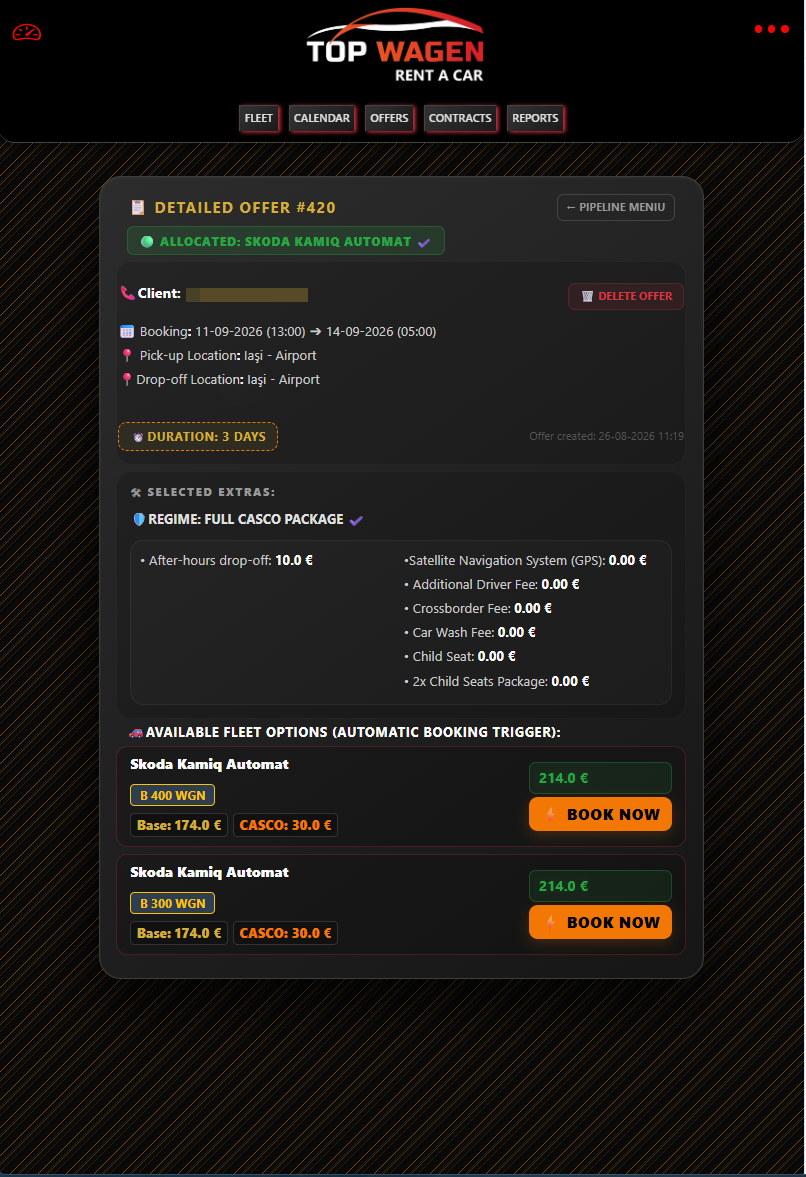

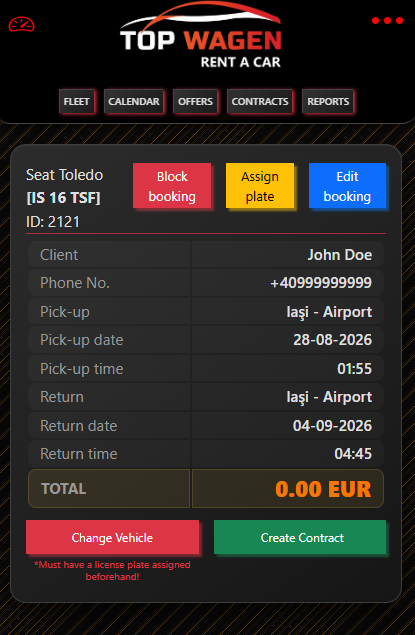

Converting a local sales quote into a live website reservation requires running a multi-table direct insertion pipeline. This pipeline uses direct native database requests instead of slow, high-overhead REST APIs to maintain optimal performance. ΓÇó The Multi-Table Relational Sync Loop: To log a single order, the script writes data across 4 independent database tables sequentially (wp_car_rental_customers, wp_car_rental_bookings, wp_car_rental_booking_options, and wp_car_rental_invoices). ΓÇó The Non-Autocommit Sandbox Shield: Turning off automatic saving (db_wp.autocommit = False) forces the entire multi-query sequence into an unclosed transaction state. The database engine caches all write steps inside a temporary thread sandbox in RAM. If any single query step drops or fails midway, the engine calls a global .rollback(), completely erasing partial customer data or broken invoice fragments to protect production data channels from corruption. ΓÇó Polymorphic Parameter Normalizers: The injector automatically translates loose front-end values into standardized data formats. It cleans up country telephone strings, uses regular expressions to fix unspaced license plates, matches branch names to specific station codes, and converts prices into formatted HTML strings (such as "X €") to maintain complete system compatibility.
[Back-Office Form POST]
. |
. v
[Polymorphic Address & ID Key Resolver] -> [Translate Text/IDs to Station Codes]
. |
. v
[Disable Live Database Autocommit] --------> (db_wp.autocommit = False)
. |
. +---> Write Customer Details ------> [wp_car_rental_customers]
. +---> Initialize Draft Booking ----> [wp_car_rental_bookings] (With temp_code)
. +---> Overwrite Code Token --------> [generate_site_booking_code()]
. +---> Inject Accessory Pivots -----> [wp_car_rental_booking_options]
. +---> Format HTML String Invoice --> [wp_car_rental_invoices] ("X €")
. |
. v
[Atomic Transaction Commit Execution] ----> (db_wp.commit()) -- Or Rollback on Exception>__Asymmetric AI Identity Extraction & Routing Engine
The system uses deep learning models to automate user profile completion from image uploads, saving time and removing typing errors for desk agents. The REST Transport Architecture: By using stateless HTTP/1.1 REST communication (transport="rest") instead of resource-heavy gRPC background daemons, the OCR engine maintains a minimal memory footprint, keeping execution exceptionally fast inside restricted server environments. The Asymmetric Precedence Cascade: To prevent word cross-contamination on multi-language European documents (e.g., a German license printing help labels in French and Romanian), the engine uses an explicit lookahead prioritization tree. It validates the primary German token rules first (is_germany). Downstream country routing tracks implement strict negative matching conditions (and not is_germany), ensuring text payloads are sent to the correct country-specific sub-parser every time. The Reverse-Chronological Validity Sifter: If a sub-parser misses an expiration date due to card scratches or glare, a fallback regular expression scanner grabs all calendar date strings across the document text dump. It standardizes layout formats into dot notation strings and runs a sorting routine focused on the trailing year characters. Extracting the furthest future date index ([-1]) identifies the legal expiration date of the card automatically, maintaining system compliance.
[Multipart Image Upload]
. |
. v
[RAM Binary Byte Stream Read] --------> [Google Vision API Client via REST Transport]
. |
. v
. [Raw Unstructured Text Block]
. |
. v
. [Asymmetric Precedence Matrix Cascade]
. |
. +-------------------+---------------+-------------------+
. | | |
. v v v
. {German Rule Check} {French Rule Check} {Romanian Rule Check}
. (BUNDESREPUBLIK token) (FRA token AND NOT German) (PRENUME token AND NOT German)
. | | |
. v v v
. [extract_germany] [extract_france] [extract_romania]>__Low-Latency Digital Invoicing & Document Asset Factories
The document automation system generates binding legal handover agreements (Return Record) entirely in memory without writing temporary files to disk. The ReportLab Point Coordinate Grid Matrix: The system maps text, shapes, and signature images directly onto a high-fidelity 2D point grid coordinate system on an A4 canvas layer. It forces the rendering engine to utilize the TrueType ArialUnicode font mapping library, ensuring Romanian diacritical accents print with total precision. The Supersampled Transparency Extraction Shield: Digital touch-signatures are processed entirely in RAM. The system extracts signatures, applies a 300% supersampling filter to sharpen vector lines, and runs a pixel-by-pixel color filter loop to erase white background pixels. This transforms signatures into clean, transparent alpha-channel overlays that merge seamlessly over document wireframes. The WSGI Low-Latency Packet Delivery Protocol: Once compiled, the virtual memory container stream is rewound to its starting index via .seek(0) and passed straight to a WSGI FileWrapper utility. This optimization chunks large PDF data streams into tiny, bite-sized network packets on the fly. This prevents memory spikes and allows the web server to handle large data downloads smoothly without blocking active request channels.
[Post-Trip Manifest Collection]
. |
. v
[Memory Canvas Initialization] ------> [ReportLab Vector Context Framework]
. |
. v
. [Absolute Point Coordinate Calculus (X / Y Grid)]
. |
. +---> Register TrueType Typefaces ------> [ArialUnicode Map for Local Diacritics]
. +---> Rasterize Graphic Wireframes ----> [Exterior / Interior Car Shells]
. +---> Layer Handwritten Signatures -----> [Supersampled Alpha-Channel Transparency]
. |
. v

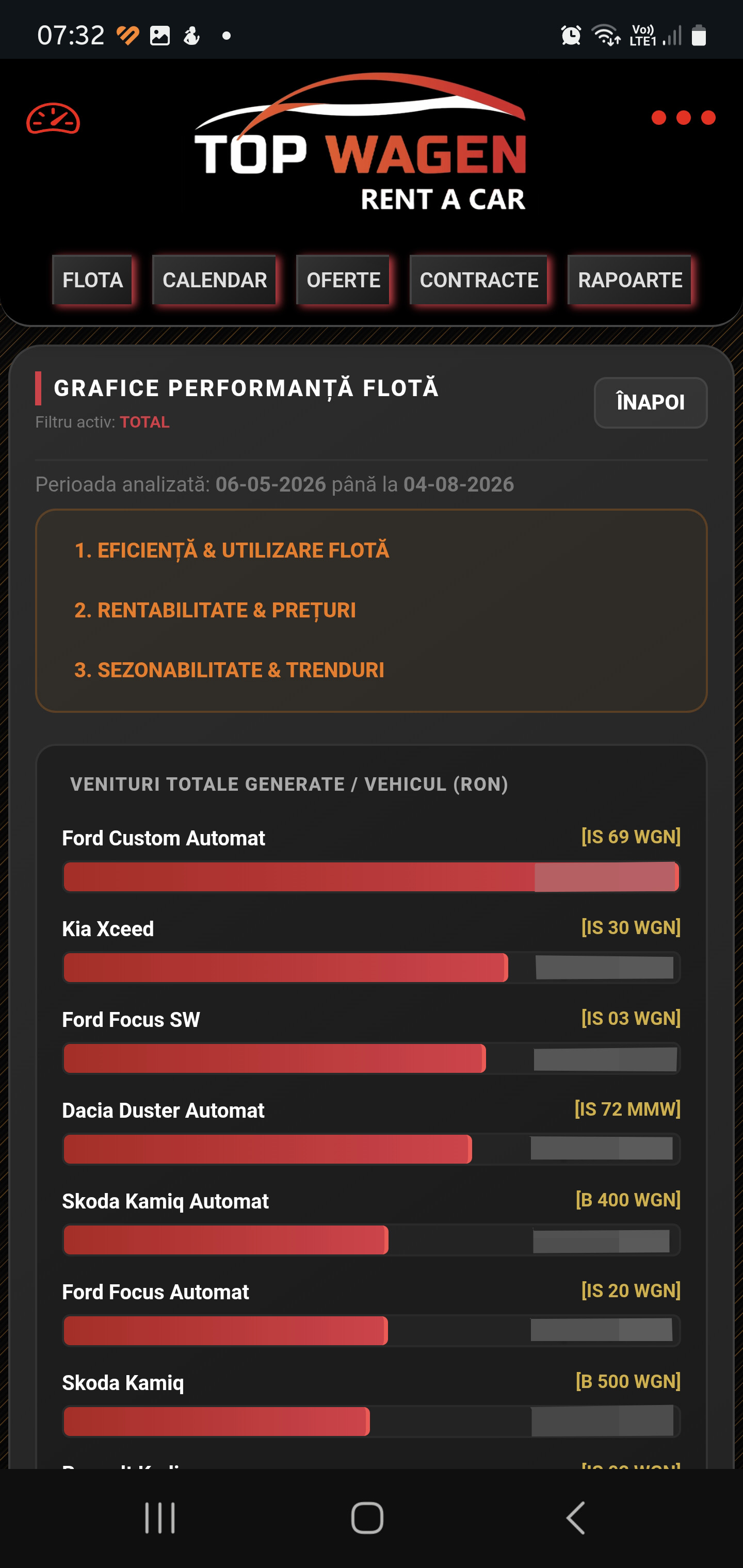

[WSGI Byte Packet Stream Delivery] ---> [FileWrapper Chunking Protocol] (Zero RAM Bloat)>__Business Intelligence (BI) Analytics Aggregation Engines
The business intelligence center runs custom financial calculations over unaggregated data rows, transforming unstructured strings into precise business metrics entirely in RAM. The Multi-Layered Financial Token Sanitizer: Financial columns inside transactional tables (amount_paid) often save as loose string fields. The reporting engine standardizes these fields on the fly: it converts commas to dots, uses regular expressions (re.sub(r'[^\d.]', ...)) to strip away trailing currency text and layout noise, and filters empty rows to zero using NULLIF and COALESCE statements. This casts messy inputs into safe decimal primitives, completely eliminating calculation errors. The Hash-Set Date Discretization Loop: To calculate precise vehicle utilization logs without duration overlap errors from same-day handovers or duplicate entries, the engine routes contract timelines through an in-memory set() container. It loops through rental ranges day-by-day, adding individual date entries to the set. Because hash sets automatically reject duplicate keys, same-day check-ins count as exactly one day of actual vehicle occupancy, keeping efficiency metrics perfectly accurate. Apportioned Commercial Yield Performance Metrics: The system processes the sanitized data tracking ledgers to derive deep business intelligence KPIs: \(\text{Average\ Daily\ Rate\ (ADR)}=\frac{\text{Gross\ Generated\ Income}}{\text{Active\ Leased\ Days}}\) \(\text{Revenue\ Per\ Available\ Vehicle\ (RevPAV)}=\frac{\text{Gross\ Generated\ Income}}{\text{Total\ Calendar\ Days\ in\ Query\ Window}}\) By comparing ADR against RevPAV metrics, the system automatically highlights which vehicle assets are underperforming or sitting empty on the lot. It processes data rows through descending sorting filters and scales percentage metrics dynamically, passing presentation-ready data models straight to frontend graphing panels.
[Raw Data Streaming Pass] -----------> [Fetch Unaggregated Log Matrix into Worker RAM]
. |
. v
. [Text-Scrubbing Inversion Algorithms]
. |
. +---> Currency Multipliers -----> [EUR Surcharges multiplied by exchange_rate]
. +---> Strip Alphanumeric Noise -> [re.sub Erases Trailing Currency Text Letters]
. +---> Null-Pointer Filters -----> [NULLIF and COALESCE Cast Empty Rows to '0']
. |
. v
[Multi-Dimensional Yield KPI Output] --> [RevPAV Sorter Lists] & [ADR Contract Sorter Lists]>__Security, Performance & Scalability Matrix
This architectural matrix provides a detailed mapping of the platform's core subsystems, aligning each component with its production-hardened operational strategy and performance metrics. Designed under a zero-trust infrastructure paradigm, the system actively replaces traditional web architectural patternsΓÇöwhich often rely on high-overhead external APIs and volatile local disk writingΓÇöwith optimized low-level mechanisms. Key architectural enforcement vectors documented in this brief include: 1. Data Integrity & Persistence: By restricting cross-server interactions to explicit multi-tenant connection pools managed under unclosed transaction blocks, the system achieves strict ACID compliance. Any infrastructure drop triggers an automatic global rollback, eliminating partial database records. 2. Attack Surface Reduction: SQL injection vectors are natively neutralized at the compiler layer by stripping formatting noise and restricting text parameters to strict positional token vectors. Similarly, file-system vulnerabilities are blocked via deterministic sequential character matching paired with localized sandbox clearing operations. 3. Compute & Memory Isolation: To maintain high operational throughput, latency profiling is enforced at runtime via Aspect-Oriented telemetry decorators that flags execution bottlenecks exceeding 500ms. Memory exhaustions are structurally prevented by building in-memory hash tables that collapse computing complexity down to linear ceilings, while heavy binary files and raw AI OCR inputs are isolated within virtual WSGI streaming packages.
+---------------------+------------------------------------+---------------------------------------------------------+
| Subsystem Component | Operational Strategy | Protective Firewall / Performance Gain |
+---------------------+--------------------------------+-------------------------------------------------------------+
| Database | Direct direct injections via | ACID Compliance: Full rollback capability prevents |
| Transactions | wp_pool | data corruption or orphaned rows |
| | with autocommit = False | if mid-query failures occur |
+---------------------+------------------------------------+---------------------------------------------------------+
| SQL | Restricts text arguments to | Injection Immunity: Separates database command syntax |
| Interrogations | positional token vectors (%s) | from data parameters, blocking SQL injection attempts |
+---------------------+------------------------------------+---------------------------------------------------------+
| File | Iterates over filenames with | Path-Traversal Block: Restricts file clearing commands |
| Actions | sequential character parsers | to matching transaction IDs, securing document folders |
| | (check_prefix) | |
+---------------------+------------------------------------+---------------------------------------------------------+
| System | Telemetry logs monitored by | Latency Protection: Detects and logs any request that hangs |
| Profiling | Aspect-Oriented decorators | for over 500ms, exposing slow queries instantly |
| | (@monitor_speed) | |
+------------------------+------------------------------------+------------------------------------------------------+
| Document | Virtual buffers wrapped inside | RAM Bloat Shield: Packs data into sequential chunks, |
| Streaming | WSGI packet protocols | avoiding server memory spikes during large data exports |
| | (FileWrapper) | |
+------------------------+------------------------------------+------------------------------------------------------+
| Data | Compiles collection arrays into| Compute Optimization: Drops compute burdens down from |
| Merging | high-speed hash tables | quadratic O(N x M) to linear O(N+M) complexity ceilings |
+------------------------+------------------------------------+------------------------------------------------------+
| Financial | Multi-layered string sanitizers| Zero Calculation Drift: Converts loose text fields into |
| Calculations | paired with hash sets (set()). | clean decimal primitives, removing calculation errors. |
+------------------------+------------------------------------+------------------------------------------------------+
| Identity | REST transport pipes combined. | Contamination Guard: Isolates image scanning memory and |
| Scanning | with negative keyword | blocks multi-language classification overlap bugs |
| | boundaries | |
+------------------------+------------------------------------+------------------------------------------------------+_if you want to look under the hood... the rabbit!
