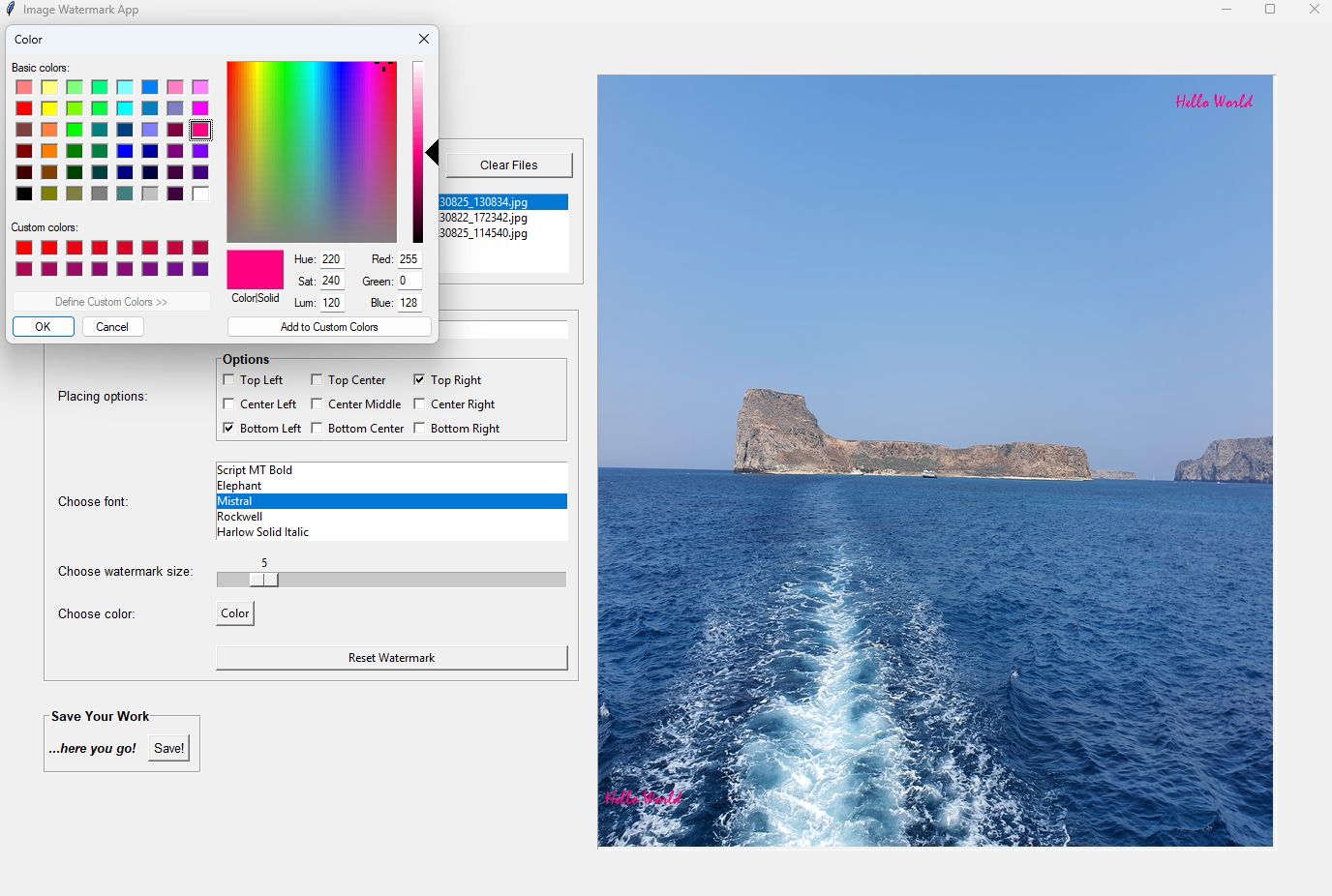

> Watermark app
// Created at: 30-07-2026
[Project Overview]
An enterprise-grade desktop imaging utility engineered in Python 3.12 using Tkinter and Pillow (PIL) to apply typographic watermarks over digital image layers. The software securely manages asset objects using explicit global caching hooks, maps host operating system typography registries via Matplotlib's font manager system, and routes user text configurations across a 3x3 layout coordinate grid. By using clean state loops to prevent list truncation errors, the engine exports structured, clean imagery outputs, showcasing solid performance and optimization.
[_Case Study]
>__Unified Process Architecture
An enterprise-grade desktop imaging utility engineered in Python 3.12 using Tkinter and Pillow (PIL) to apply typographic watermarks over digital image layers. The ASCII diagram maps the complete, multi-layered data flow of the application. It illustrates how incoming user interactions pass through the Tkinter UI event bus, interact with the operating system's font registry via compiled C-extensions, maintain memory residency, and finally compile downstream into immutable pixel arrays on disk
+-------------------------------------------------------------------------------------------------------+
| INCOMING OPERATING SYSTEM SIGNAL |
| (Tkinter Main Event Loop Initialization) |
+-------------------------------------------------------------------------------------------------------+
|
+-------------------------+-------------------------+
| |
v v
+---------------------------------------------------+ +-----------------------------------------------+
| GRAPHICS PREVIEW & UI CONTROLLERS | | ENVIRONMENTAL INSPECTION BUS |
| Interprets user interactions across: | | Fires `matplotlib.font_manager` directly |
| - Image List Selection Events | | to scan OS filesystems for TrueType (.ttf) |
| - Dynamic Numeric Scale Inputs | | registries in linear time [O(M)] |
| - 3x3 Positional Checkbutton Vectors | | |
+---------------------------------------------------+ +-----------------------------------------------+
| |
+-------------------------+-------------------------+
|
v
+-------------------------------------------------------------------------------------------------------+
| COORDINATED STATE MANAGER |
| Synchronizes front-end text layers with backend properties across shared memory pools. |
+-------------------------------------------------------------------------------------------------------+
| |
| (State Validation Pass) | (Canvas Preview Signal)
v v
+---------------------------------------------------+ +-----------------------------------------------+
| LAZY COMPILATION CHECK | | VIRTUAL CANVAS DOM MODIFIER |
| Verifies if a template file path is linked. | | Updates the 3x3 layout placeholder grid |
| Halts downstream processing early if null. | | synchronously in constant runtime [O(1)] |
+---------------------------------------------------+ +-----------------------------------------------+
| |
+-------------------------+-------------------------+
|
v
+-------------------------------------------------------------------------------------------------------+
| ANTI-GARBAGE COLLECTION LOCK (SHIM) |
| Pins the reference counter of the instantiated global `PhotoImage` object to explicit memory |
| addresses, blocking Python's memory management system from wiping the image cache buffer. |
+-------------------------------------------------------------------------------------------------------+
|
v
+-------------------------------------------------------------------------------------------------------+
| PILLOW (PIL) EDITING PIPELINE |
| 1. Enforces strict context management by opening the raw file inside a `with` block loader. |
| 2. Converts variable encodings into a uniform RGB pixel profile. |
| 3. Binds the absolute filesystem TrueType path to the target drawing canvas via `ImageFont`. |
| 4. Evaluates layout arrays simultaneously, drawing vector paths at exact pixel offsets. |
+-------------------------------------------------------------------------------------------------------+
|
v
+-------------------------------------------------------------------------------------------------------+
| PERSISTENCE LAYER |
| Invokes a low-level file write stream to serialize the unbuffered image directly to disk storage. |
+-------------------------------------------------------------------------------------------------------+
